MANATEC
PB 700 Eco WB Waterborne Paint Spray Booth
₹ 7,00,000 / Piece
₹ 8,00,000
13%
Highlights

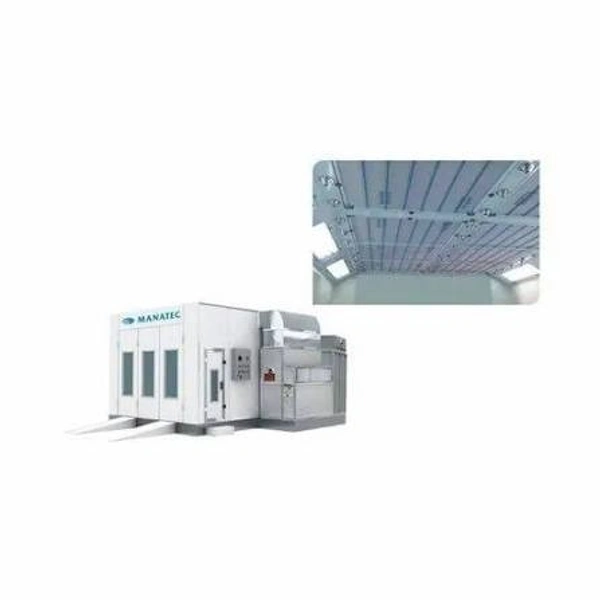

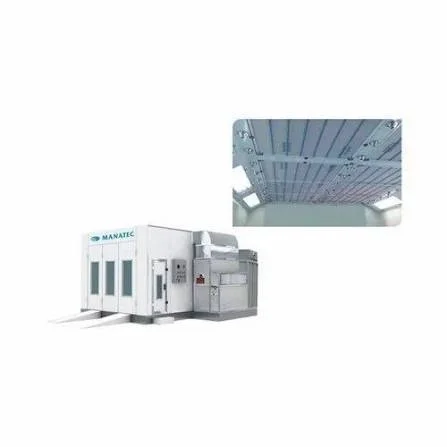

Manatec PB 700 Eco WB Waterborne Paint Spray Booth
A waterborne paint booth solution for passenger-car body shops, dealer workshops and paint facilities that need controlled airflow for professional refinishing. The PB 700 Eco WB combines insulated booth construction, thermic heating and a dedicated ceiling-mounted waterborne airflow system.
Supply Coverage: Hyderabad, Visakhapatnam and across Telangana & Andhra Pradesh
Designed for Waterborne Paint Operations
Dedicated Waterborne System
Waterborne paint airflow support is provided on both sides of the ceiling for paint application requirements.
36 Stainless-Steel Nozzles
Two rows of stainless-steel nozzles support directed air movement inside the booth.
Controlled Heating & Airflow
Diesel burner with thermic unit, plus 27,000 m³/h flow rate for passenger-car paint operations.
Professional Control & Safety
Digital temperature setting, timer, operating-hour counter, emergency stop and safety thermostat.
One Partner for Your Complete Workshop Setup
From paint booth selection to connected workshop requirements, our team helps you plan a solution that fits your operations.
- Authorised Distributor for Manatec Paint Spray Booths
- Guidance for booth selection, layout and quotation
- One-stop solution for workshop needs across all segments
- Paint booths, garage equipment and detailing tools under one roof
- Body-shop consumables and paint booth filters available
- Support for new setups, upgrades and replacement requirements
PB 700 Eco WB Specifications
| Specification | Details |
|---|---|
| Outside Dimensions | 7000 × 5350 × 3400 mm |
| Inside Dimensions | 6900 × 4000 × 2650 mm |
| Main Door Dimensions | 3000 × 2600 mm |
| Service Door Dimensions | 800 × 2000 mm |
| Applicable Vehicle | Passenger Car |
| Air Flow Rate | 27,000 m³/h |
| Maximum Working Temperature | 70°C |
| Lighting Intensity | Below 800 Lux |
| Sound Level | Below 80 dBA |
| Power Supply | 380V AC, 3 Phase, 50 Hz |
| Power | 8 kW |
| Panel Construction | EPS (Expanded Polystyrene) Sandwich Panels |
| Booth Base Height | 300 mm |
| Ceiling Lighting | 8 Ceiling Light Boxes; each with 3 × 16W LED Bulbs |
| Heating System | Diesel Burner with Thermic Unit |
| Waterborne Airflow System | Both Sides of the Ceiling |
| Waterborne Fans | 2 Sets of 1.5 kW Double-Intake Centrifugal Fans |
| Air Nozzles | 36 Stainless-Steel Nozzles in 2 Rows |
Specifications are based on the PB 700 Eco (WB) brochure. Confirm final configuration and scope during quotation.
Suitable Workshop Applications
Plan Your Waterborne Paint Booth Setup
Share your workshop location, available installation space, vehicle category and paint process requirement. We will guide you with the suitable Manatec solution and quotation support.
Call / WhatsApp: 9090676763
Frequently Asked Questions
What makes the PB 700 Eco WB suitable for waterborne paint?
It includes a dedicated waterborne airflow system on both sides of the ceiling, with double-intake centrifugal fans and 36 stainless-steel nozzles.
Is PB 700 Eco WB suitable for passenger cars?
Yes. This model is designed for passenger-car paint and refinishing applications.
Can Vishnu Auto Connect help with workshop layout planning?
Yes. Share your available space and paint process requirement for product guidance and quotation support.
Which locations do you supply to?
We support paint booth requirements in Hyderabad, Visakhapatnam and across Telangana and Andhra Pradesh.
Do you provide related workshop equipment and paint booth filters?
Yes. Vishnu Auto Connect supports paint booths, garage equipment, detailing tools, body-shop consumables and paint booth filters.
