Infrared Heating
10 sets of 3 kW infrared lamps for controlled paint-baking support.
MANATEC
PB 700 Eco IRH Infrared Paint Spray Booth
₹ 6,70,000 / Piece
₹ 10,00,000
33%
Highlights
Authorised Manatec Distributor

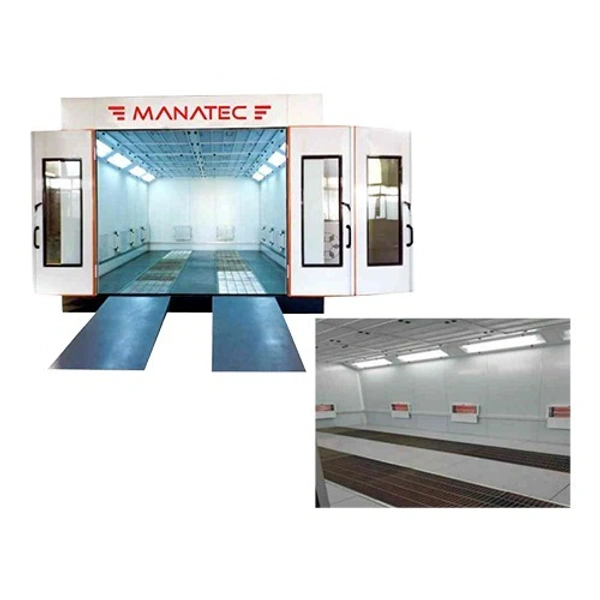

Manatec PB 700 Eco IRH Infrared Paint Spray Booth
The Manatec PB 700 Eco IRH is an infrared-heated paint booth designed for passenger-car body shops that require controlled paint-baking support. It combines infrared heating, insulated sandwich panels, dual turbo intake fans, LED working illumination and intelligent digital controls for professional refinishing operations.
Call / WhatsApp: 9090676763Key Highlights
Up to 80°C Operation
Digital temperature controller designed for a maximum working temperature of 80°C.
Dual Turbo Intake
Two 3 kW turbo intake fans support controlled airflow inside the booth.
Insulated Construction
EPS sandwich panels help reduce heat transfer between the booth interior and exterior.
LED Working Illumination
Eight ceiling light boxes, each with 4 × 16 W LED bulbs, support clear visibility.
Intelligent Controls
Digital setting, timer adjustment, operating-hour counter, failure indication and emergency stop.
Why Choose Vishnu Auto Connect?
- Authorised Distributor for Manatec Paint Spray Booths
- Guidance to select the right booth for your workshop
- Support for workshop layout, quotation and installation planning
- One-stop solution for complete workshop needs across all segments
- Paint booths, garage equipment, detailing tools, body-shop consumables and filters under one roof
- Support for new body-shop setups, workshop upgrades and replacement requirements
- Supply and after-sales support across Hyderabad, Visakhapatnam, Telangana and Andhra Pradesh
Technical Specifications
| Outside Dimensions | 7000 × 5200 × 3400 mm |
|---|---|
| Inside Dimensions | 6900 × 3900 × 2650 mm |
| Main Door Dimensions | 3000 × 2600 mm |
| Service Door Dimensions | 650 × 2000 mm |
| Air Flow Rate | 20,000 m³/h |
| Maximum Working Temperature | 80°C |
| Lighting Intensity | 650–700 Lux |
| Sound Level | Below 80 dBA |
| Applicable Vehicle | Passenger Car |
| Power Supply | 380V AC, 3 Phase, 50 Hz |
| Power | 37 kW |
| Intake Fans | 2 Turbo Fans – 3 kW Each |
| Infrared Heating | 10 Sets of 3 kW IR Lamps |
| Booth Base Height | 280 mm |
Ideal For
Premium automobile body shops, car dealer paint facilities, accident-repair centres, high-volume passenger-car refinishing operations, and advanced body-shop setups requiring infrared paint-baking support.
Plan Your Infrared Paint Booth Setup
Share your workshop location, available installation space, vehicle category and expected setup timeline. Our team will help you select the suitable Manatec paint booth solution and provide quotation support.
Frequently Asked Questions
What is special about the PB 700 Eco IRH model?
It uses 10 sets of 3 kW infrared lamps for controlled paint-baking support and has a maximum working temperature of up to 80°C.
Is PB 700 Eco IRH suitable for passenger cars?
Yes. It is designed for passenger-car painting and refinishing applications.
Can Vishnu Auto Connect support complete workshop setup requirements?
Yes. Vishnu Auto Connect supplies paint booths, garage equipment, detailing tools, body-shop consumables and paint booth filters under one roof.
