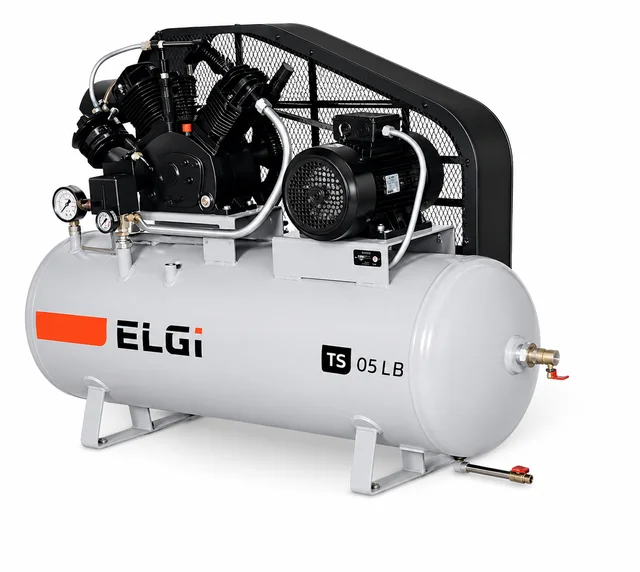

ELGi TS 05 LB Air Compressor
₹ 0 / Piece
Highlights
ELGi LB Series – Single & Two Stage Belt Driven Oil-Lubricated Reciprocating Air Compressors
Professional-grade Single & Two Stage Belt Driven Oil-Lubricated Reciprocating Air Compressors designed for manufacturing industries, automobile workshops, fabrication units, engineering industries, service centres, production facilities, and continuous industrial compressed air applications across India.
Product Description
The ELGi LB Series Belt Driven Reciprocating Air Compressors are engineered to deliver reliable, efficient, and continuous compressed air for industrial and commercial applications. Built with rugged cast iron compressor blocks, precision-engineered internal components, and heavy-duty belt drive technology, the LB Series provides outstanding durability, consistent air delivery, and low operating costs.
Designed for continuous-duty operation, these compressors feature industrial-duty construction, pressure switch with unloader, slow-running compressor design, leak-proof fittings, and high-efficiency motors to ensure maximum productivity with minimum maintenance.
Whether used in automobile workshops, manufacturing plants, fabrication units, woodworking industries, food processing, or engineering facilities, the ELGi LB Series delivers dependable compressed air for demanding operations.
⭐ Core Values that Benefit the Customer
✔ High Reliability
Robust internal parts and fewer service points ensure lower downtime and reliable compressor performance.
✔ Cost Effective
Offers low life cycle cost with zero compromise on performance and quality.
✔ Energy Efficient
Best-in-class flow for specified horsepower with high-efficiency IE2 motors for reduced power consumption.
✔ Operator Safety
Designed according to international safety standards, ensuring safe and dependable operation.
⚡ Key Features
- Belt Driven Compressor Design
- Single Stage & Two Stage Models
- Heavy Duty Cast Iron Block
- Pressure Switch with Unloader
- Industrial Duty Rating
- Totally Enclosed Belt Guard
- Slow Running Compressor
- Leak Proof Fittings
- Air Receiver Tested to IS 5456 Standards
- High Reliability
- Energy Efficient Operation
- Low Maintenance
- Long Service Life
- Rugged Industrial Construction
- Continuous Duty Performance
🔍 Features & Benefits
Cast Iron Block
Provides superior durability, excellent heat dissipation, and longer compressor life compared to conventional aluminium block compressors.
Pressure Switch with Unloader
Ensures easy motor starting while reducing starting load and increasing motor life.
Air Receiver
Manufactured according to international quality standards for safe compressed air storage.
Industrial Duty Rating
Designed for demanding industrial applications with reliable continuous operation.
Totally Enclosed Belt Guard
Protects moving components while improving workplace safety.
Testing as per IS 5456 Standards
Air receivers are tested as per IS 5456 standards for guaranteed safety and performance.
Slow Running Speed
Reduces wear and tear while extending compressor life and minimizing maintenance.
Inter Stage Pressure Relief Valve
Provides additional safety by protecting the compressor against excessive pressure.
Leak Proof Fittings
Prevents compressed air leakage and improves energy efficiency.
🏭 Applications
📍 Available Across India
The ELGi LB Series Air Compressors are available with Pan India supply for workshops, automobile industries, manufacturing plants, fabrication companies, engineering industries, production facilities, and industrial compressed air applications.
We supply genuine ELGi compressors with expert product guidance, competitive pricing, and dependable customer support across India.
⚙ Technical Specifications
Single Stage Compressors
Swipe left/right to view full table →
| Model | Piston Disp. (LPM/CFM) | FAD (LPM/CFM) | Max. Pressure | Motor Power | Speed | Cylinders | Air Receiver | Dimensions (L×B×H mm) | Net Weight |
|---|---|---|---|---|---|---|---|---|---|
| SS 03 LB | 360 / 12.7 | 255 / 9 | 9 kg/cm² | 3 HP (2.2 kW) | 550 RPM | 2 | 180 L | 1340 × 535 × 1075 | 205 kg |
| SS 05 LB | 608 / 21.4 | 442 / 15.6 | 9 kg/cm² | 5 HP (3.7 kW) | 925 RPM | 2 | 220 L | 1590 × 535 × 1075 | 265 kg |
| SS 07 LB | 920 / 32.5 | 708 / 25 | 9 kg/cm² | 7.5 HP (5.5 kW) | 690 RPM | 2 | 220 L | 1590 × 625 × 1105 | 307 kg |
| SS 10 LB | 1229 / 43.4 | 949 / 33.5 | 9 kg/cm² | 10 HP (7.5 kW) | 920 RPM | 2 | 220 L | 1590 × 625 × 1105 | 322 kg |
| SS 15 LB | 1229 / 43.4 | 949 / 33.5 | 9 kg/cm² | 10 HP (7.5 kW) | 920 RPM | 2 | 420 L | 1650 × 750 × 1340 | 367 kg |
| SS 15 LB | 1860 / 65.7 | 1390 / 49.1 | 9 kg/cm² | 15 HP (11 kW) | 925 RPM | 3 | 500 L | 1915 × 875 × 1505 | 514 kg |
Two Stage Compressors
Swipe left/right to view full table →
| Model | Piston Disp. (LPM/CFM) | FAD (LPM/CFM) | Max. Pressure | Motor Power | Speed | Cylinders | Air Receiver | Dimensions (L×B×H mm) | Net Weight |
|---|---|---|---|---|---|---|---|---|---|
| TS 03 LB | 303 / 10.7 | 249 / 8.8 | 12 kg/cm² | 3 HP (2.2 kW) | 925 RPM | 2 | 180 L | 1340 × 530 × 1075 | 200 kg |
| TS 03 LB | 303 / 10.7 | 249 / 8.8 | 12 kg/cm² | 3 HP (2.2 kW) | 925 RPM | 2 | 220 L | 1590 × 530 × 1075 | 225 kg |
| TS 05 LB | 501 / 17.7 | 411 / 14.5 | 12 kg/cm² | 5 HP (3.7 kW) | 925 RPM | 2 | 220 L | 1590 × 570 × 1085 | 240 kg |
| TS 07 LB | 702 / 24.8 | 583 / 20.6 | 12 kg/cm² | 7.5 HP (5.5 kW) | 1050 RPM | 2 | 220 L | 1590 × 620 × 1110 | 270 kg |
| TS 07 LB* | 702 / 24.8 | 583 / 20.6 | 12 kg/cm² | 7.5 HP (5.5 kW) | 1050 RPM | 3 | 500 L | 1880 × 670 × 1260 | 375 kg |
| TS 10 LB | 1002 / 35.4 | 852 / 30.1 | 12 kg/cm² | 10 HP (7.5 kW) | 750 RPM | 3 | 220 L | 1590 × 800 × 1275 | 350 kg |
| TS 10 LB* | 1002 / 35.4 | 852 / 30.1 | 12 kg/cm² | 10 HP (7.5 kW) | 750 RPM | 3 | 500 L | 1915 × 875 × 1420 | 420 kg |
| TS 15 LB | 1538 / 54.3 | 1249 / 44.1 | 12 kg/cm² | 15 HP (11 kW) | 1150 RPM | 3 | 500 L | 1915 × 875 × 1420 | 470 kg |
| TS 15 LB* | 1402 / 49.5 | 1090 / 38.5 | 15 kg/cm² | 15 HP (11 kW) | 1050 RPM | 3 | 500 L | 1915 × 875 × 1420 | 505 kg |
🔧 ELGi Airmate Accessories
Improve compressed air quality and system performance with genuine ELGi accessories.
🌍 About ELGi
ELGi is one of the world's leading manufacturers of air compressors and compressed air systems. With over 60 years of engineering excellence, 2 million+ installations worldwide, and a presence in 120+ countries, ELGi delivers reliable, energy-efficient compressed air solutions trusted across industries.
🏆 Why Choose ELGi?
Genuine ELGi Products
Trusted Global Air Compressor Brand
60+ Years of Engineering Excellence
2 Million+ Installations Worldwide
Presence in 120+ Countries
High Reliability
Energy Efficient Technology
Long Service Life
Low Maintenance
Pan India Product Support
🔸 ELGi Product Range
📞 ELGi LB Series Air Compressors – Enquiries & Bookings
Looking for genuine ELGi LB Series Belt Driven Reciprocating Air Compressors? We supply genuine ELGi compressors across India for manufacturing industries, automobile workshops, engineering companies, fabrication units, production facilities, and industrial applications.
Our experts will help you select the right ELGi compressor based on your compressed air requirement, operating pressure, and industrial application.
