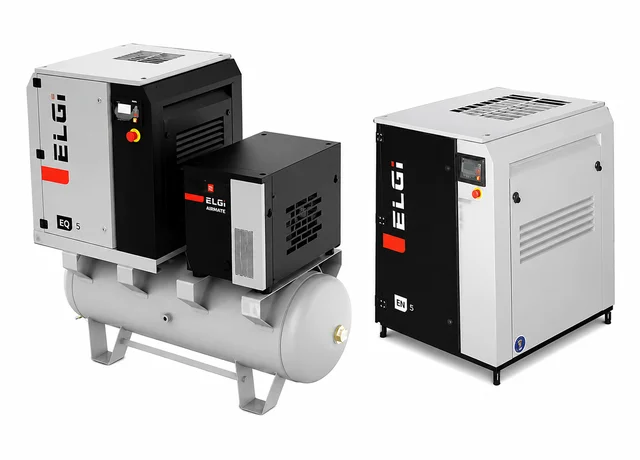

ELGi EQ 5 / EN 15 Screw Air Compressor
₹ 0 / Piece
Highlights
ELGi EQ & EN Series – Oil-Lubricated Encapsulated Rotary Screw Air Compressors
Professional-grade oil-lubricated encapsulated rotary screw air compressors engineered for continuous industrial compressed air applications. Combines advanced screw compressor technology, energy-efficient motors, intelligent controls, superior cooling, and low-noise operation for manufacturing, engineering, fabrication, automobile, food processing, pharmaceutical, textile and packaging industries across India.
Product Description
The ELGi EQ & EN Series Encapsulated Screw Air Compressors are designed to provide reliable, efficient, and uninterrupted compressed air for demanding industrial operations. Built with a compact encapsulated design, these compressors minimize noise while maximizing efficiency and reliability.
Featuring a highly efficient screw air-end, premium motors, intelligent Neuron XT controller, robust cooling system, and advanced three-stage air-oil separation technology, the EQ & EN Series delivers clean compressed air with lower maintenance requirements and extended service life.
Available in both Fixed Speed and Variable Speed Drive (VFD) models, the ELGi EQ & EN Series offers flexible compressed air solutions that help industries reduce energy consumption while maintaining consistent air delivery.
⭐ Core Benefits
✔ High Reliability
Premium-quality compressor components ensure dependable operation, reduced downtime, and longer service life.
✔ Cost Effective
Low maintenance requirements, reduced operating costs, and excellent energy efficiency help lower the total cost of ownership.
✔ Energy Efficient
High-efficiency screw air-end and premium motors maximize compressed air output while minimizing power consumption.
✔ Operator Safety
Designed to international quality and safety standards with intelligent monitoring and protection systems.
⚡ Key Features
- Oil-Lubricated Rotary Screw Technology
- Encapsulated Compressor Design
- Compact Footprint
- High-Efficiency Air-End
- Premium Efficiency Motor
- Intelligent Neuron XT Controller
- Three-Stage Air-Oil Separation
- Efficient Cooling System
- Low Noise Operation
- Easy Maintenance Access
- Spin-On Oil Filter
- Heavy-Duty Industrial Construction
- High Ambient Temperature Performance
- Fixed Speed & Variable Speed (VFD) Models
- Genuine ELGi Engineering
🚀 Features & Benefits
Energy Efficiency Through Encapsulated Components
The compact encapsulated design minimizes pressure losses while improving airflow, reducing operational noise, and increasing overall compressor efficiency.
Highly Efficient Air-Oil Separation
The advanced three-stage air-oil separation system effectively separates compressed air from lubricating oil, providing cleaner air with minimal oil carry-over and extending separator life.
Compact Design
The space-saving design allows installation in compact work areas while providing easy access for maintenance and servicing.
High-Efficiency Motor
Premium efficiency motors ensure reliable continuous-duty performance with lower power consumption and reduced operating costs.
Neuron XT Intelligent Controller
The advanced controller offers:
- Real-time compressor monitoring
- Maintenance reminders
- Alarm notifications
- Safety protection
- Fault diagnostics
- Service indication
- Operating hour display
Ease of Maintenance
Large service access panels and spin-on filters simplify routine maintenance, reducing service time and improving equipment uptime.
Robust Cooling System
Designed to operate efficiently in ambient temperatures up to 50°C, featuring high-efficiency cooling components for dependable performance even in harsh industrial environments.
Variable Speed Drive (EN Series)
Selected EN Series models are available with Variable Speed Drive technology, automatically matching compressor output with air demand to reduce power consumption and improve energy savings.
🏭 Applications
📍 Available Across India
The ELGi EQ & EN Series Encapsulated Screw Air Compressors are available with Pan India supply for manufacturing industries, engineering companies, fabrication workshops, automobile service centres, food processing plants, pharmaceutical industries, packaging units, textile industries, and industrial compressed air applications.
We supply genuine ELGi compressors with expert product selection, competitive pricing, installation guidance, and dependable customer support across India.
⚙ Technical Specifications
EQ Series – 50Hz
Swipe left/right to view full table →
| Model | Motor Power | Working Pressure | FAD | Weight | Noise | Tank Capacity | Dimensions (L×B×H) |
|---|---|---|---|---|---|---|---|
| EQ 2 | 2.2 kW (3 HP) | 7 / 8 / 10 Bar | Up to 0.37 m³/min (13.1 CFM) | 143 kg | 68 dB(A) | 200 / 270 L | 615 × 715 × 845 mm |
| EQ 3 | 3.0 kW (4 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 0.48 m³/min (16.9 CFM) | 143 kg | 68 dB(A) | 200 / 270 L | 615 × 715 × 845 mm |
| EQ 4 | 4.0 kW (5 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 0.50 m³/min (17.6 CFM) | 143 kg | 68 dB(A) | 200 / 270 L | 615 × 715 × 845 mm |
| EQ 5 | 5.5 kW (7.5 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 0.74 m³/min (26.1 CFM) | 150 kg | 68 dB(A) | 200 / 270 L | 615 × 715 × 845 mm |
| EQ 5X | 5.5 kW (7.5 HP) | 7 / 8 / 10 Bar | Up to 0.79 m³/min (28.0 CFM) | 230 kg | 68 dB(A) | 270 / 500 L | 825 × 650 × 925 mm |
| EQ 7 | 7.5 kW (10 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 1.10 m³/min (38.8 CFM) | 255 kg | 68 dB(A) | 270 / 500 L | 825 × 650 × 925 mm |
EN Series – Fixed Speed (50Hz)
Swipe left/right to view full table →
| Model | Motor Power | Working Pressure | FAD | Weight | Noise | Tank Capacity | Dimensions (L×B×H) |
|---|---|---|---|---|---|---|---|
| EN 5X | 5.5 kW (7.5 HP) | 7 / 8 / 10 Bar | Up to 0.84 m³/min (29.5 CFM) | 230 kg | 66 dB(A) | 270 / 500 L | 825 × 650 × 925 mm |
| EN 7 | 7.5 kW (10 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 1.13 m³/min (40.0 CFM) | 255 kg | 66 dB(A) | 270 / 500 L | 825 × 650 × 925 mm |
| EN 11 | 11 kW (15 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 1.78 m³/min (63.0 CFM) | 377 kg | 71 dB(A) | 270 / 500 L | 875 × 800 × 1008 mm |
| EN 15 | 15 kW (20 HP) | 7 / 8 / 10 / 12.5 Bar | Up to 2.04 m³/min (72.0 CFM) | 395 kg | 71 dB(A) | 500 L | 875 × 800 × 1008 mm |
EN Series – Variable Speed Drive (VFD)
Swipe left/right to view full table →
| Model | Motor Power | Working Pressure | FAD | Weight | Noise | Tank Capacity | Dimensions (L×B×H) |
|---|---|---|---|---|---|---|---|
| EN 5X VFD | 5.5 kW (7.5 HP) | 7 / 8 / 10 Bar | 0.84–0.68 m³/min (29.5–24.0 CFM) | 327 kg | 66 dB(A) | 270 / 500 L | 875 × 800 × 1008 mm |
| EN 7 VFD | 7.5 kW (10 HP) | 7 / 8 / 10 Bar | 1.20–0.95 m³/min (42.5–33.5 CFM) | 338 kg | 66 dB(A) | 270 / 500 L | 875 × 800 × 1008 mm |
| EN 11 VFD | 11 kW (15 HP) | 7 / 8 / 10 Bar | 1.77–1.48 m³/min (62.5–52.4 CFM) | 389 kg | 71 dB(A) | 270 / 500 L | 875 × 800 × 1008 mm |
| EN 15 VFD | 15 kW (20 HP) | 7 / 8 / 10 Bar | 2.04–1.76 m³/min (72.0–62.0 CFM) | 405 kg | 71 dB(A) | 500 L | 875 × 800 × 1008 mm |
🔧 Available Options
🔄 Air-Oil Flow Circuit
The ELGi EQ & EN Series uses an advanced air-oil flow circuit to maximize efficiency and air quality. Air passes through the intake filter, intake valve, and screw air-end before entering the air-oil separator tank. The lubricating oil is filtered, cooled, and recirculated through the oil cooler and thermal valve, while compressed air passes through the after-cooler before reaching the outlet. This design ensures efficient cooling, low pressure loss, and reliable compressed air delivery.
🏆 Why Choose ELGi?
Global Air Compressor Manufacturer
Genuine ELGi Products
Energy-Efficient Screw Technology
Compact & Low-Noise Design
Intelligent Digital Controller
Heavy-Duty Industrial Performance
Easy Maintenance
Long Service Life
Nationwide Product Support
Trusted by Industries Worldwide
🔸 ELGi Product Range
📞 ELGi EQ & EN Series – Enquiries & Bookings
Looking for genuine ELGi EQ & EN Series Encapsulated Screw Air Compressors? We supply genuine ELGi compressed air solutions across India for manufacturing industries, automobile workshops, engineering companies, fabrication units, food processing industries, pharmaceutical plants, packaging facilities, and industrial applications.
Our team will help you choose the ideal ELGi compressor based on your air demand, working pressure, production capacity, and energy-saving requirements.
