Gravity Gun & Acetal Cup Kit (FLG-G5-18-C): 1.8mm Fluid Tip, FLG-5 Air Cap

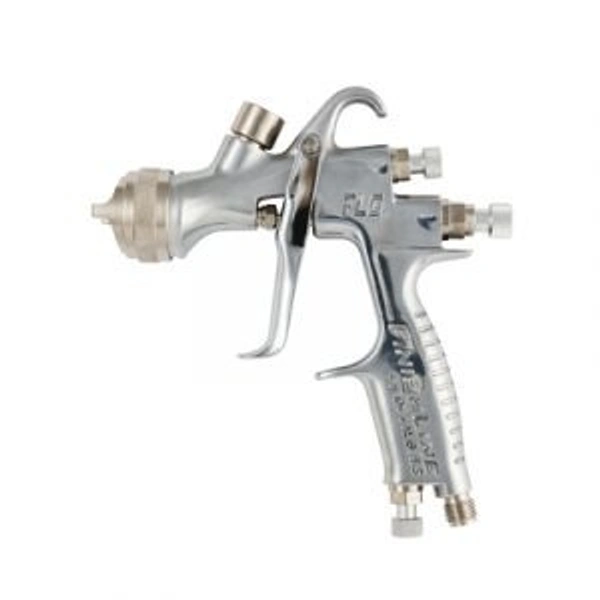

DeVilbiss FLG-5 Gravity Feed Spray Gun – 1.8mm Set-up

Compliant spray gun for a wide range of refinish paints and coatings with unique and efficient DeVilbiss Trans-Tech® Atomisation Technology.

• Ergonomically shaped gun handle for positive grip and comfort.
• Smooth action trigger with exceptionally light pull for fatigue free operation.
• Ultra lightweight but strong, cast aluminium gun body.
• Full controls of pattern shape, fluid flow rate and air inlet pressure.
• Precision engineered brass air cap and stainless steel fluid tips.
• Choice of gravity or suction models with large capacity cups.
• Not suitable for use with water borne paints.

Technical Specification

• Air Inlet Thread – 1/8” Universal
• Weight (gun & cup) – Gravity 642 gms, Suction 934 gms
• Air Cap & Ring – Plated Brass
• Fluid Tip – Stainless Steel
• Needle – Stainless Steel
• Cup capacity – Gravity 560 mls, Suction 1140 mls
• No.5 Air Cap
• Trans-Tech Compliance technology
• Air consumption: 277 (9.8 cfm) @ 2.0 Bar

Suitable for the following products:

• Solvent Based Paints and Materials
• Lacquers
• Adhesives
• Oils
• Stains and Varnishes
• Sealers and Undercoats
• Wax Based Materials

The DeVilbiss FLG-G5-18-C Gravity Gun & Acetal Cup Kit features a 1.8mm fluid tip and the FLG-5 air cap, designed for use with solvent-based paints and a wide range of coatings. Built with DeVilbiss Trans-Tech® atomisation technology, it provides efficient and controlled paint application.

The gun includes an ergonomic handle, a smooth light-pull trigger, and a lightweight cast aluminium body for comfortable operation. It offers full adjustment for pattern shape, fluid flow and air pressure. Precision-machined brass air caps and stainless-steel fluid tips ensure durability. The kit includes a gravity-feed acetal cup (560ml capacity) and is not recommended for water-borne materials.
