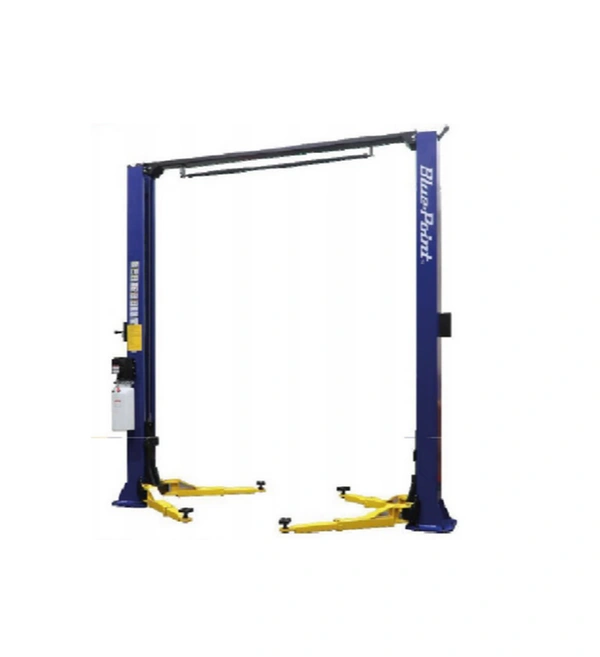

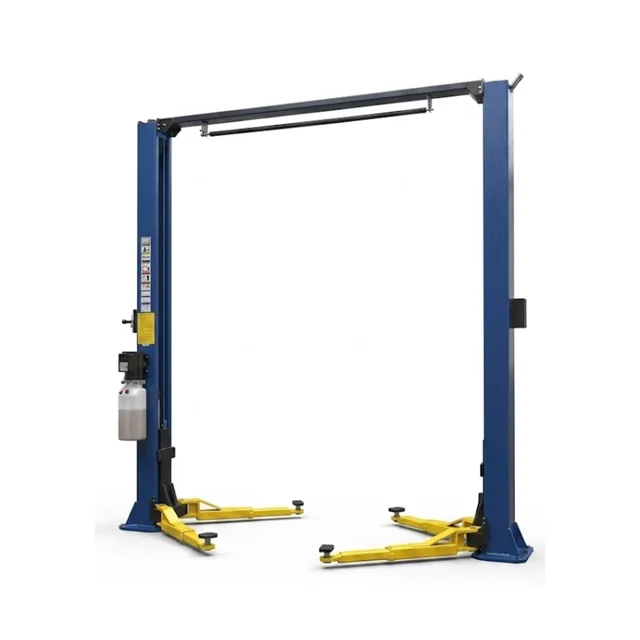

BLUE - POINT
TWO POST LIFT - CLEAR FRAME
₹ 10,000 / Piece
Delivery Options
Get delivery at your doorstep
Capacity 4 tons, symmetrically two-post lift
Hydraulic direct drive/cable equalisation
Dual point safety release
Heavy-duty arm restrains and hydraulic hose guards are designed to be safe and long-lasting
Smooth lift operation: nylon glide blocks are used to provide a durable and smooth lift operation
Arm pads: adjustable screw with stackable rubber lifting pad
Parameter |
EELR765EL1/3 |
|---|---|
| Capacity | 4 tons |
| Overall Width | 3400 mm |
| Width Between Columns | 2800 mm |
| Drive-Thru Width | 255 mm |
| Overall Height | 3676 mm |
| Height to Lowered Lift Pads | 110 mm |
| Height to Raised Lift Pads | 156 mm |
| Front Arm Length | 800 to 740 mm |
| Rear Arm Length | 1150 to 1320 mm |
| Maximum Lifting Height | 1821 mm |
| Power Requirement | 230~400V, 50/60Hz, 1/3Ph |
| Arm Design | Symmetric |
| Arm Type | 2-Stage |
| Type of Equalisation | Cable |
| Hydraulic System | 2 cylinders direct |
| Overhead Limit Switch | Yes |
| Electrical Release | 1 side manual |
| Door Guard | Yes |
