The Blue Point In-Ground Scissors Lift is a professional-grade garage scissor lift designed for accuracy, durability, and efficiency. With a 3.5-ton lifting capacity across both primary and secondary platforms, it eliminates the need for an additional roller jack while providing a clear, unobstructed working area between platforms.
Its compact, column-free design saves valuable workshop space, while the dual engaging twin interlocking mechanical safety lock with pneumatic release ensures operator safety at all times. Suitable for modern garages, service centers, and 4-wheel alignment workshops, the BLP SOS is designed for continuous, reliable professional use.
BLUE POINT
In- Ground Scissors lift
₹95,000 / Unit
₹1,00,000
5%
Highlights
BLUE POINT • BLP SOS • HYDERABAD

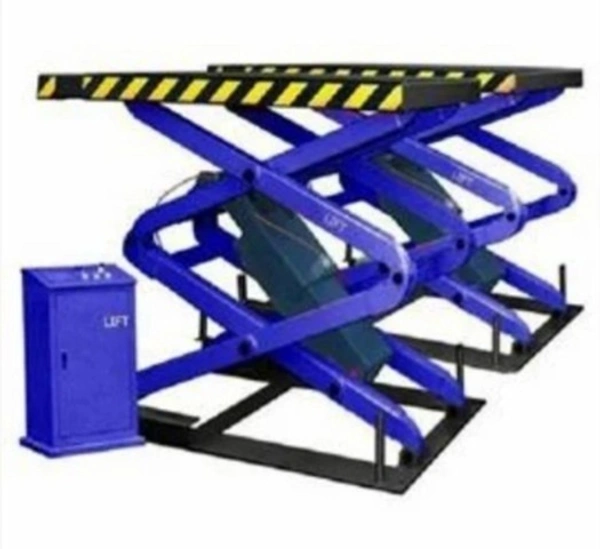

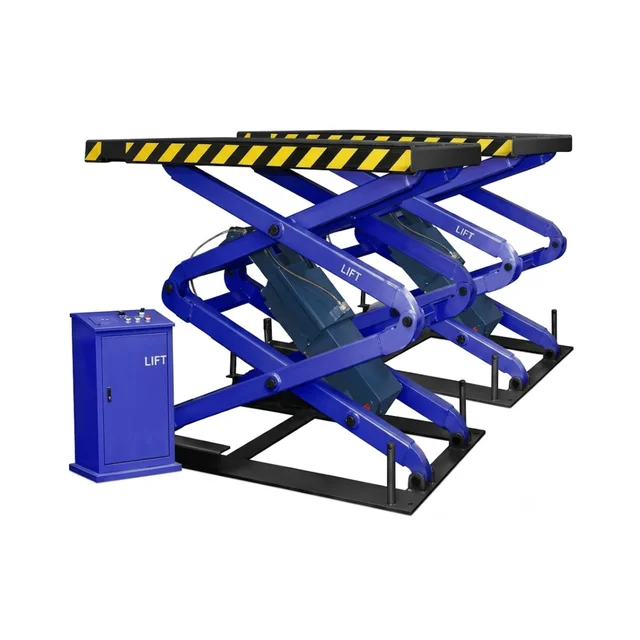

Blue Point In-Ground Scissors Lift – BLP SOS
Professional-grade in-ground garage scissor lift with 3.5-ton capacity, column-free compact design, dual interlocking mechanical safety lock, and electric hydraulic drive — built for modern garages and service centers across South India.
3.5 TON CAPACITY
LIFT HEIGHT: 1850 MM
ELECTRIC HYDRAULIC
COLUMN-FREE DESIGN
WARRANTY SUPPORT
⚡ Key Features
- 3.5 Ton Primary & Secondary Platform Capacity
- Column-Free Compact & Space-Saving Design
- Clear Unobstructed Working Area
- Dual Engaging Twin Interlocking Safety Lock
- Pneumatic Safety Release System
- Electric Hydraulic Lift Drive
- Primary & Secondary Platform Operation
- Suitable for 4-Wheel Alignment Work
- Rear Slip Plate Included
- Heavy-Duty Mild Steel Construction
📍 Available Locations
- Hyderabad – Telangana
- Visakhapatnam – Andhra Pradesh
- Supply Across Telangana
- Supply Across Andhra Pradesh
⚙ Technical Specifications
| Parameter | Specification |
|---|---|
| Model | BLP SOS – 1 Ph |
| Maximum Capacity | 3.5 Ton |
| Max Lifting Height | 1850 mm |
| Min Lifting Height | 330 mm |
| Overall Dimensions | 4500 × 4500 mm |
| Overall Length | 4300 mm |
| Overall Width | 2160 mm |
| Primary Runway Length | 4000 mm |
| Secondary Runway Length | 1400 mm |
| Primary Platform Width | 620 mm |
| Secondary Platform Width | 550 mm |
| Width Between Runways | 920 mm |
| Min Wheel Base – 4 Wheel Alignment | 1915 mm |
| Rear Slip Plate Length | 1517 mm |
| Primary Lift Height | 1860 mm |
| Secondary Lift Height | 456 mm |
| Runway Initial Height | 330 mm |
| Primary Lifting / Lowering Time | 40 – 60 sec |
| Secondary Lifting / Lowering Time | 10 – 30 sec |
| Working Temperature | 5°C – 40°C |
| Air Supply Requirement | 8 – 10 Bar |
| Power Supply | 380V, 3Ph, 50Hz / 220V, 1Ph, 50-60Hz |
| Lift Drive | Electric Hydraulic |
| Material | Mild Steel |
| Color | Blue / Black |
