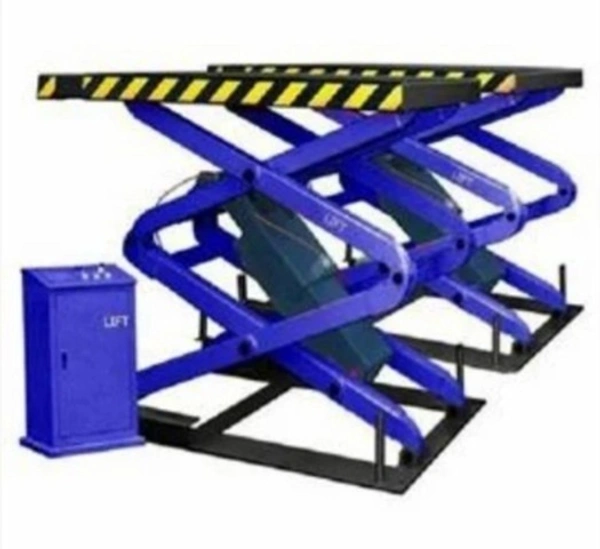

Hydraulic Scissor Lift,

Brand: blue point

Capacity: 3.5 ton

Working Height: 1850 mm

Model Name/Number: BLP SOS - 1 ph

Running Mode: Moving

Usage/Application: Service station / Garage

Lift Drive: Hydraulic Lift, Electric Motor

Material: Mild steel

Overall Dimensions: 4500 X 4500

Handrail: Not Provided

Voltage: 380V, 3Ph, 50Hz, 220V, 1Ph, 50-60Hz

Power: AC 415v - 3ph / 220v - 1ph

Color: Blue / Blck

Max.Lifting Height: 1850 mm

Min Lifting Height: 330 mm

I Deal In: New Only

Drive: Electric Hydraulic

Maximum Capacity: 3.5 ton

Overall Length: 4300 mm

Primary Runway Length: 4000 mm

Secondary Runway Length: 1400 mm

Overall Width: 2160 mm

Primary Platform WidthL: 620 mm

Secondary Platform Width: 550 mm

Width between Runways: 920 mm

Minimum Wheel Base - 4 Wheel Alignment: 1915 mm

Rear Slip Plate Length: 1517 mm

Primary Lift Height: 1860 mm

Secondary Lift Height: 456 mm

Runway Initial Height: 330 mm

Primary Lifting / Lowering Time: 40 - 60 sec

Secondary Lifting / Lowering Time: 10 - 30 sec

Working Temperature: 5'''' - 40'''' C

Air Supply Requirement: 8 - 10 Bar

Power Supply: 280V, 3 Ph, 50Hz, 220V, 1 Ph, 50-60Hz

Product Description

With 3.5-ton lifting capacity for primary and secondary platform• Primary platform design - eliminating the additional roller jack requirement and having a clear obstructed working area between the platform• Without columns, compact and space-saving design• Dual engaging twin interlocking mechanical safety lock with pneumatic release.
