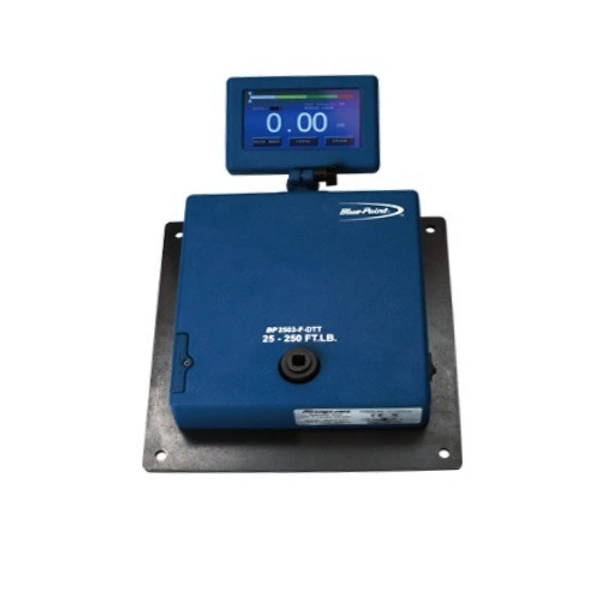

Digital Torque Tester

Description:

• Integral Transducer and sturdy housing allow mounting in virtually any position.
• Integral Transducer: Full bridge strain gage, 350 ohm, 1500uE, 3mV/V F.S, 3.75 excitation.
• Units of Torque: Nm, kg.cm., ft.lb., in.lb., in.oz.
• Audible (tone).
• Torque Accuracy: ± 0.5% ± 1% count CW and CCW from 10% to 100% of full scale at 25° C.
• LCD Touch Screen: 4.7 inch color graphics display.
• Screen resolution: 480 X 272 pixels.
• Display Accuracy: 4 digits, 500 cycle counts.
• 6 “AA” Alkaline cells for battery power included.
• Track, Peak and First Peak modes of operation.
• Operating Temperature: 40° to 110° F (5° to 42° C).
• Storage Temperature: 0° to 122° F (-20° to 50° C).
• Humidity up to 85% non-condensing.
• ISO-6789-2003 and ASME B107-28-2005 standards compliant.
• Certificate of N.I.S.T. traceability from 10% to 100% of full scale.
• Includes storage case, AC adapter and USB cable 110v - 220v.
• Dates & times, serial numbers, required accuracy vs actual readings, percentage error & users of torque wrenches tested are stored.

Specifications
